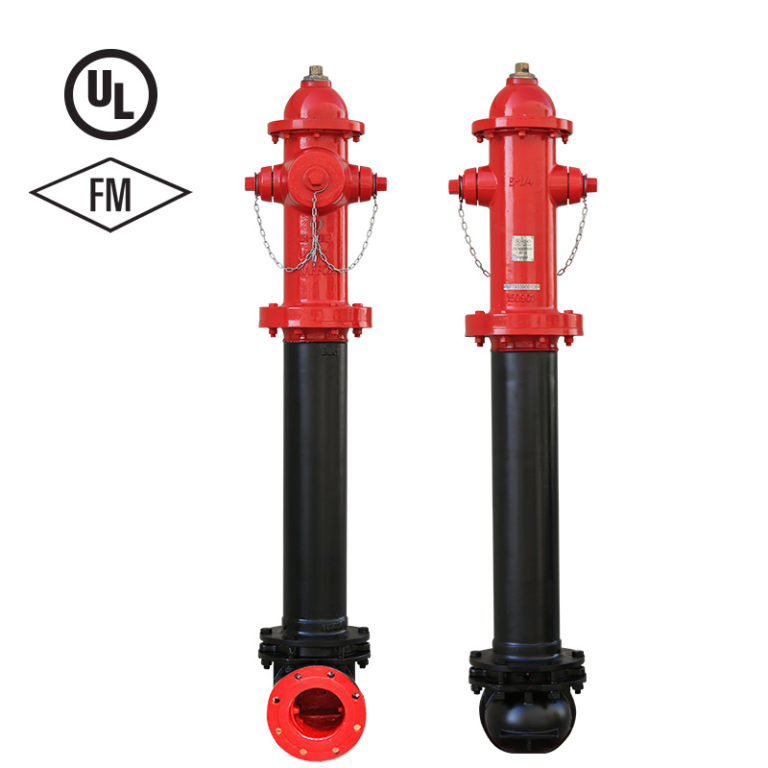

Dry Type Pillar Fire Hydrants – UL/FM



  • NAFFCO Fire Hydrants are designed to comply with ANSI/AWWA C502.
  • Dry barrel design eliminates damage to the hydrant caused by freezing of the upper part.
  • NAFFCO Fire Hydrants are designed for high performance and easy to install, maintain and repair.
  • Excellent and proven flow characteristics.
  • 2 x 2½” NH thread connectors for soft hose connection.
  • 1 x 4½” NH thread pumper connection for fire trucks.
  • 6” inlet connection complying to mechanical joint ANSI/AWWA C111/A21.11 or flange connection ASME B16.5 Class 150.
  • Operation threads are corrosion protected and for easy operation.
  • NAFFCO fire hydrants are high pressure rated to 250 psi compatible with today’s trends.
  • Internal epoxy paint system gives high corrosion protection to hydrants.
  • Advanced safety couplings and flange design reduces traffic damage to hydrant.
  • Main valve is easily removed from either the bonnet flange or ground line flange.
